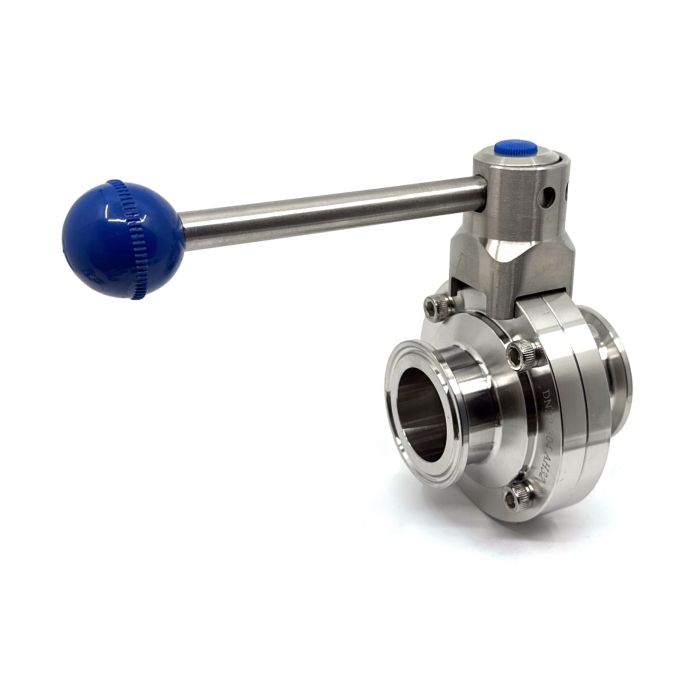

Scheibenventil Klammer/Klammer DIN 32676

Edelstahl
Dichtung: Silikon -20℃ to 140℃ Edelstahl Getränkearmaturen Druck: bis 10 bar .

In stock

Artikelnummer
sf-91200003
Material
1.4301/304
Lieferzeit
1 - 3 Werktage

Grouped product items

91200003
70 Pc. in stock
87,68 € 73,68 €
AbmessungDN 15
Material1,4301/304
Gewicht in kg1,15
D34,0 mm
D178,0 mm
A66,0 mm
H79,0 mm
L137,5 mm
KxK8.0 x 8.0
Oberflächenrauhigkeit<0.8UM
  • From 2 Pc. 83,29 € 69,99 € -5%
  • From 5 Pc. 75,87 € 63,76 € -13%
  • From 15 Pc. 67,81 € 56,98 € -23%
  • From 20 Pc. 61,25 € 51,47 € -30%
91200004
39 Pc. in stock
87,68 € 73,68 €
AbmessungDN 20
Material1,4301/304
Gewicht in kg1,25
D34,0 mm
D178,0 mm
A66,0 mm
H79,0 mm
L137,5 mm
KxK8.0 x 8.0
Oberflächenrauhigkeit<0.8UM
  • From 2 Pc. 83,29 € 69,99 € -5%
  • From 5 Pc. 75,87 € 63,76 € -13%
  • From 15 Pc. 67,81 € 56,98 € -23%
  • From 20 Pc. 61,25 € 51,47 € -30%
91200005
65 Pc. in stock
76,60 € 64,37 €
AbmessungDN 25
Material1,4301/304
Gewicht in kg1,31
D50,5 mm
D178,0 mm
A66,0 mm
H79,0 mm
L137,5 mm
KxK8.0 x 8.0
Oberflächenrauhigkeit<0.8UM
2025 Kalenderwoche 43: 50 Stk. <br> 2026 Kalenderwoche 03: 100 Stk. <br>
  • From 2 Pc. 72,77 € 61,15 € -5%
  • From 5 Pc. 66,29 € 55,71 € -13%
  • From 15 Pc. 58,71 € 49,34 € -23%
  • From 20 Pc. 53,04 € 44,57 € -31%
91200006
65 Pc. in stock
80,88 € 67,97 €
AbmessungDN 32
Material1,4301/304
Gewicht in kg1,34
D50,5 mm
D186,0 mm
A66,0 mm
H83,0 mm
L137,5 mm
KxK8.0 x 8.0
Oberflächenrauhigkeit<0.8UM
  • From 2 Pc. 76,84 € 64,57 € -5%
  • From 5 Pc. 72,28 € 60,74 € -11%
  • From 15 Pc. 67,81 € 56,98 € -16%
  • From 20 Pc. 61,24 € 51,46 € -24%
91200007
636 Pc. in stock
91,87 € 77,20 €
AbmessungDN 40
Material1,4301/304
Gewicht in kg1,39
D50,5 mm
D195,0 mm
A70,0 mm
H87,5 mm
L137,5 mm
KxK8.0 x 8.0
Oberflächenrauhigkeit<0.8UM
  • From 2 Pc. 87,27 € 73,34 € -5%
  • From 5 Pc. 79,50 € 66,81 € -13%
  • From 15 Pc. 70,40 € 59,16 € -23%
  • From 20 Pc. 63,58 € 53,43 € -31%
91200008
87 Pc. in stock
104,37 € 87,71 €
AbmessungDN 50
Material1,4301/304
Gewicht in kg1,42
D64,0 mm
D1108,0 mm
A78,0 mm
H93,0 mm
L137,5 mm
KxK10.0 x 10.0
Oberflächenrauhigkeit<0.8UM
  • From 2 Pc. 99,16 € 83,33 € -5%
  • From 5 Pc. 90,34 € 75,92 € -13%
  • From 15 Pc. 79,56 € 66,86 € -24%
  • From 20 Pc. 71,86 € 60,39 € -31%
91200009
142 Pc. in stock
143,12 € 120,27 €
AbmessungDN 65
Material1,4301/304
Gewicht in kg1,68
D91,0 mm
D1125,0 mm
A80,0 mm
H103,0 mm
L137,5 mm
KxK10,0 x 10,0
Oberflächenrauhigkeit<0.8UM
  • From 2 Pc. 135,97 € 114,26 € -5%
  • From 5 Pc. 133,73 € 112,38 € -7%
  • From 10 Pc. 117,02 € 98,34 € -18%
  • From 20 Pc. 96,12 € 80,77 € -33%
91200010
46 Pc. in stock
197,53 € 165,99 €
AbmessungDN 80
Material1,4301/304
Gewicht in kg1,95
D106,0 mm
D1140,0 mm
A84,0 mm
H114,0 mm
L181,5 mm
KxK11,0 x 11,0
Oberflächenrauhigkeit<0.8UM
  • From 2 Pc. 187,65 € 157,69 € -5%
  • From 5 Pc. 170,96 € 143,66 € -13%
  • From 10 Pc. 149,59 € 125,71 € -24%
  • From 20 Pc. 122,87 € 103,25 € -38%

Beschreibung / Scheibenventil Klammer/Klammer DIN 32676

Dichtung: Silikon (Temperaturbereich: -20℃ bis 140℃) für Edelstahl-Getränkearmaturen nach DIN 32676. Diese Dichtungen sind ideal für hygienische Anwendungen und für einen Druckbereich von bis zu 10 bar geeignet.

Ersatzdichtungen sind in verschiedenen Materialien verfügbar, darunter:

Kombinierbar mit einer Vielzahl von Komponenten, wie zum Beispiel:

Produktanlagen

91200003_Swiss_Fittings_AG 91200003_Swiss_Fittings_AG (823.40 kB)
91200004_Swiss_Fittings_AG 91200004_Swiss_Fittings_AG (911.05 kB)
91200005_Swiss_Fittings_AG 91200005_Swiss_Fittings_AG (1.44 MB)
91200006_Swiss_Fittings_AG 91200006_Swiss_Fittings_AG (1.34 MB)
91200007_Swiss_Fittings_AG 91200007_Swiss_Fittings_AG (1.41 MB)
91200008_Swiss_Fittings_AG 91200008_Swiss_Fittings_AG (1.45 MB)
91200009_Swiss_Fittings_AG 91200009_Swiss_Fittings_AG (1.55 MB)
Clamped_Butterfly_Valve_DIN_new Clamped_Butterfly_Valve_DIN_new (468.98 kB)
