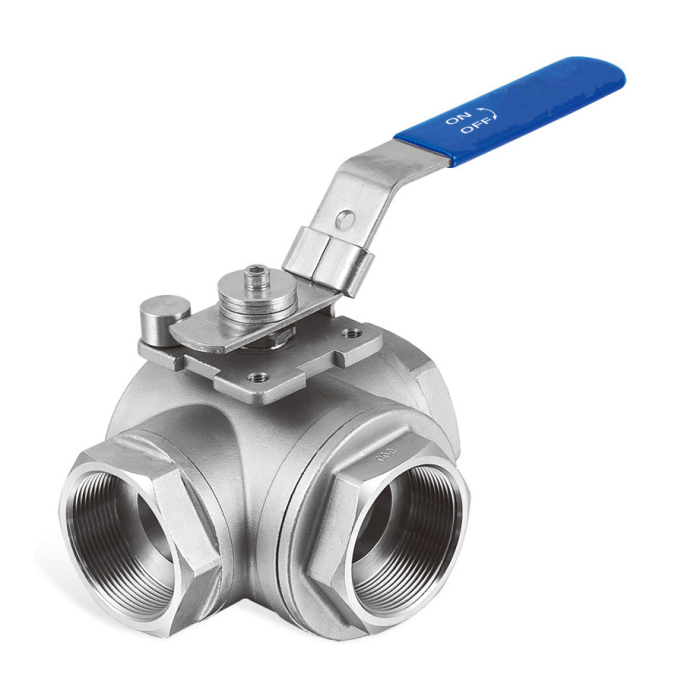

3-Wege Kugelhahn L IG

Edelstahl
PED CE geprüft, mit Werkszeugnis nach EN 10204 3.1, ISO 5211 Aufnahme für StellantriebGewinde: Rp 10226-1 & ISO 7-1 Bohrung: L-Bohrung

Auf Lager

Artikelnummer
ar-3-wege-kugelhahn-L
Material
1.4408/CF8M
Lieferzeit
1 - 3 Werktage

Gruppiert Produkte - Artikel

22170121
77 St. Auf Lager
45,93 € 38,60 €
AbmessungDN8 1/4"
Material1.4408/CF8M
GewindeEN 10226-1 & ISO 7-1
Ø d12,7 mm
L65,0 mm
B6,0 mm
D9,0 mm
C12,7 mm
A10,2 mm
W132,0 mm
H60,0 mm
M42,0 mm
NM5x0,8 mm
TORQUE Kgf-cm68,0
CV Factor7,8
Hand lever screwM5
  • Ab 2 St. 40,82 € 34,30 € -11%
  • Ab 5 St. 38,27 € 32,16 € -17%
  • Ab 10 St. 31,89 € 26,80 € -31%
  • Ab 20 St. 29,35 € 24,66 € -36%
22170122
180 St. Auf Lager
45,93 € 38,60 €
AbmessungDN10 3/8"
Material1.4408/CF8M
GewindeEN 10226-1 & ISO 7-1
Ø d12,7 mm
L65,0 mm
B6,0 mm
D9,0 mm
C12,7 mm
A10,2 mm
W132,0 mm
H60,0 mm
M42,0 mm
NM5x0,8 mm
TORQUE Kgf-cm68,0
CV Factor7,8
Hand lever screwM5
  • Ab 2 St. 40,82 € 34,30 € -11%
  • Ab 5 St. 38,27 € 32,16 € -17%
  • Ab 10 St. 31,89 € 26,80 € -31%
  • Ab 20 St. 29,35 € 24,66 € -36%
22170123
192 St. Auf Lager
63,59 € 53,44 €
AbmessungDN15 1/2"
Material1.4408/CF8M
GewindeEN 10226-1 & ISO 7-1
Ø d12,7 mm
L65,0 mm
B6,0 mm
D9,0 mm
C12,7 mm
A10,2 mm
W132,0 mm
H60,0 mm
M42,0 mm
NM5x0,8 mm
TORQUE Kgf-cm68,0
CV Factor9,5
Hand lever screwM5
  • Ab 2 St. 60,49 € 50,83 € -5%
  • Ab 4 St. 52,93 € 44,48 € -17%
  • Ab 10 St. 43,47 € 36,53 € -32%
22170124
141 St. Auf Lager
84,85 € 71,30 €
AbmessungDN20 3/4"
Material1.4408/CF8M
GewindeEN 10226-1 & ISO 7-1
Ø d16,0 mm
L77,0 mm
B6,0 mm
D10,7 mm
C15,0 mm
A16,0 mm
W155,0 mm
H73,0 mm
M50,0 mm
NM6x1,0 mm
TORQUE Kgf-cm105,0
CV Factor14,0
Hand lever screwM6
  • Ab 2 St. 80,71 € 67,82 € -5%
  • Ab 4 St. 70,61 € 59,34 € -17%
  • Ab 10 St. 58,00 € 48,74 € -32%
22170125
103 St. Auf Lager
124,88 € 104,94 €
AbmessungDN25 1"
Material1.4408/CF8M
GewindeEN 10226-1 & ISO 7-1
Ø d20,0 mm
L93,0 mm
B7,5 mm
D10,7 mm
C15,0 mm
A18,0 mm
W155,0 mm
H80,0 mm
M50,0 mm
NM6x1,0 mm
TORQUE Kgf-cm196,0
CV Factor26,0
Hand lever screwM6
  • Ab 2 St. 118,77 € 99,81 € -5%
  • Ab 4 St. 103,93 € 87,34 € -17%
  • Ab 5 St. 85,37 € 71,74 € -32%
22170126
101 St. Auf Lager
187,06 € 157,19 €
AbmessungDN32 1 1/4"
Material1.4408/CF8M
GewindeEN 10226-1 & ISO 7-1
Ø d25,0 mm
L105,0 mm
B7,5 mm
D10,7 mm
C15,0 mm
A18,0 mm
W155,0 mm
H85,0 mm
M50,0 mm
NM6x1,0 mm
TORQUE Kgf-cm266,0
CV Factor43,0
Hand lever screwM6
  • Ab 2 St. 177,92 € 149,51 € -5%
  • Ab 4 St. 155,69 € 130,83 € -17%
  • Ab 5 St. 127,88 € 107,46 € -32%
22170127
58 St. Auf Lager
251,66 € 211,48 €
AbmessungDN40 1 1/2"
Material1.4408/CF8M
GewindeEN 10226-1 & ISO 7-1
Ø d32,0 mm
L124,0 mm
B8,5 mm
D14,0 mm
C20,0 mm
A19,0 mm
W210,0 mm
H103,0 mm
M70,0 mm
NM8x1,25 mm
TORQUE Kgf-cm363,0
CV Factor70,0
Hand lever screwM6
2025 Kalenderwoche 49: 60 Stk. <br>
  • Ab 2 St. 239,37 € 201,15 € -5%
  • Ab 4 St. 209,45 € 176,01 € -17%
  • Ab 5 St. 172,05 € 144,58 € -32%
22170128
554 St. Auf Lager
353,67 € 297,20 €
AbmessungDN50 2"
Material1.4408/CF8M
GewindeEN 10226-1 & ISO 7-1
Ø d38,0 mm
L143,0 mm
B8,5 mm
D14,0 mm
C20,0 mm
A19,0 mm
W210,0 mm
H110,0 mm
M70,0 mm
NM8x1,25 mm
TORQUE Kgf-cm500,0
CV Factor102,0
Hand lever screwM6
  • Ab 2 St. 336,39 € 282,68 € -5%
  • Ab 4 St. 294,35 € 247,35 € -17%
  • Ab 5 St. 241,78 € 203,18 € -32%

Produktanlagen

22170121_Swiss_Fittings_AG 22170121_Swiss_Fittings_AG (422.21 kB)
22170122_Swiss_Fittings_AG 22170122_Swiss_Fittings_AG (422.21 kB)
22170123_Swiss_Fittings_AG 22170123_Swiss_Fittings_AG (422.21 kB)
22170124_Swiss_Fittings_AG 22170124_Swiss_Fittings_AG (388.55 kB)
22170125_Swiss_Fittings_AG 22170125_Swiss_Fittings_AG (424.67 kB)
22170126_Swiss_Fittings_AG 22170126_Swiss_Fittings_AG (1.24 MB)
22170127_Swiss_Fittings_AG 22170127_Swiss_Fittings_AG (703.39 kB)
22170128_Swiss_Fittings_AG 22170128_Swiss_Fittings_AG (695.77 kB)
