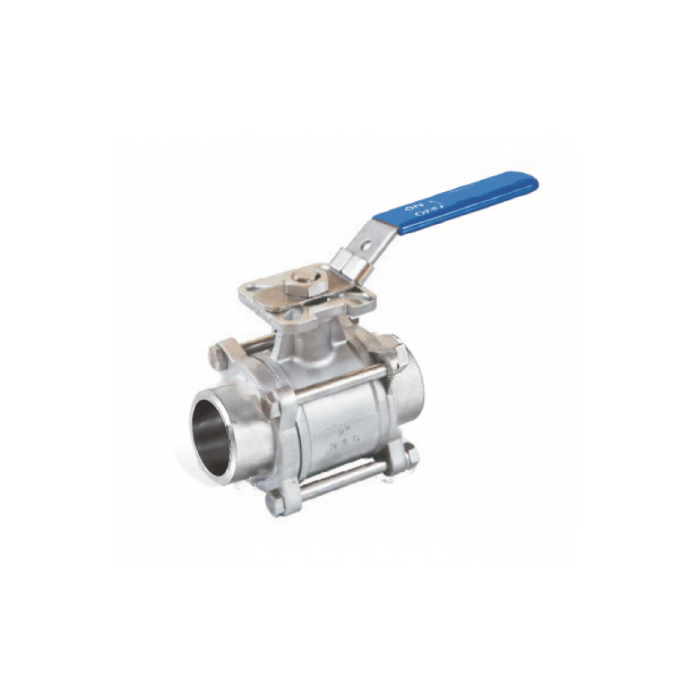

3-teiliger Anschweißkugelhahn SE

Edelstahl
Zulassung: ATEX (GAS) IIB, Zone 1 & 2 & (DUST) Zone 21 & 22

In stock

Artikelnummer
ar-3-tlg-anschweißkugelhahn-iso
Abmessung
DN8 1/4" - DN50 2"
Material
1.4408/CF8M
Lieferzeit
1 - 3 Werktage

Grouped product items

23100421
199 Pc. in stock
36,76 € 30,89 €
Gewicht in kg 0.5040
Abmessung DN 8 1/4″
Material CF8M (1.4408)
Gewinde DIN EN 10226-1/ ISO 7-1
A 10,0 mm
B 12,0 mm
D 11,0 mm
D2 14,1 mm
D1 15,2 mm
F 9,0 mm
H 72,0 mm
H1 38,5 mm
H2 9,0 mm
L 64,0 mm
L1 61,0 mm
L2 225,0 mm
L3 64,0 mm
W 141,0 mm
PN 63
  • From 2 Pc. 33,31 € 27,99 € -9%
  • From 5 Pc. 29,14 € 24,49 € -21%
  • From 15 Pc. 23,93 € 20,11 € -35%
23100422
154 Pc. in stock
36,76 € 30,89 €
Gewicht in kg 0.5040
Abmessung DN10 3/8″
Material CF8M (1.4408)
Gewinde DIN EN 10226-1/ ISO 7-1
A 10,0 mm
B 12,0 mm
D 12,5 mm
D2 17,6 mm
D1 17,2 mm
F 9,0 mm
H 72,0 mm
H1 38,5 mm
H2 9,0 mm
L 64,0 mm
L1 61,0 mm
L2 225,0 mm
L3 64,0 mm
W 141,0 mm
PN 63
  • From 2 Pc. 33,31 € 27,99 € -9%
  • From 5 Pc. 29,14 € 24,49 € -21%
  • From 15 Pc. 23,93 € 20,11 € -35%
23100423
1308 Pc. in stock
36,14 € 30,37 €
Gewicht in kg 0.6000
Abmessung DN15 1/2″
Material CF8M (1.4408)
Gewinde DIN EN 10226-1/ ISO 7-1
A 10,0 mm
B 12,0 mm
D 15,0 mm
D2 21,7 mm
D1 22,5 mm
F 9,0 mm
H 75,0 mm
H1 42,0 mm
H2 9,0 mm
L 72,0 mm
L1 63,0 mm
L2 225,0 mm
L3 72,0 mm
W 141,0 mm
PN 63
  • From 2 Pc. 32,74 € 27,51 € -9%
  • From 8 Pc. 28,64 € 24,07 € -21%
  • From 25 Pc. 23,53 € 19,77 € -35%
23100424
451 Pc. in stock
46,36 € 38,96 €
Gewicht in kg 0.8080
Abmessung DN20 3/4″
Material CF8M (1.4408)
Gewinde DIN EN 10226-1/ ISO 7-1
A 13,0 mm
B 12,0 mm
D 20,0 mm
D2 27,1 mm
D1 27,5 mm
F 9,0 mm
H 81,0 mm
H1 48,0 mm
H2 9,0 mm
L 80,0 mm
L1 78,0 mm
L2 225,0 mm
L3 80,0 mm
W 141,0 mm
PN 63
  • From 2 Pc. 42,00 € 35,29 € -9%
  • From 7 Pc. 36,75 € 30,88 € -21%
  • From 20 Pc. 30,18 € 25,36 € -35%
23100425
461 Pc. in stock
62,82 € 52,79 €
Gewicht in kg 1.2360
Abmessung DN25 1″
Material CF8M (1.4408)
Gewinde DIN EN 10226-1/ ISO 7-1
A 13,0 mm
B 12,0 mm
D 25,0 mm
D2 33,8 mm
D1 34,0 mm
F 11,0 mm
H 93,0 mm
H1 55,0 mm
H2 11,0 mm
L 85,0 mm
L1 87,0 mm
L2 245,0 mm
L3 85,0 mm
W 162,0 mm
PN 63
  • From 2 Pc. 56,91 € 47,82 € -9%
  • From 4 Pc. 49,80 € 41,85 € -21%
  • From 10 Pc. 40,90 € 34,37 € -35%
23100426
136 Pc. in stock
96,32 € 80,94 €
Gewicht in kg 1.8690
Abmessung DN32 1 1/4″
Material CF8M (1.4408)
Gewinde DIN EN 10226-1/ ISO 7-1
A 13,0 mm
B 12,0 mm
D 32,0 mm
D2 42,6 mm
D1 43,0 mm
F 11,0 mm
H 98,0 mm
H1 60,0 mm
H2 11,0 mm
L 105,0 mm
L1 97,0 mm
L2 256,0 mm
L3 105,0 mm
W 162,0 mm
PN 63
  • From 2 Pc. 87,25 € 73,32 € -9%
  • From 4 Pc. 76,35 € 64,16 € -21%
  • From 8 Pc. 62,71 € 52,70 € -35%
23100427
271 Pc. in stock
130,38 € 109,56 €
Gewicht in kg 2.6060
Abmessung DN40 1 1/2″
Material CF8M (1.4408)
Gewinde DIN EN 10226-1/ ISO 7-1
A 13,0 mm
B 12,0 mm
D 38,0 mm
D2 48,7 mm
D1 50,0 mm
F 14,0 mm
H 109,0 mm
H1 70,0 mm
H2 14,0 mm
L 113,0 mm
L1 113,0 mm
L2 260,0 mm
L3 113,0 mm
W 188,0 mm
PN 63
  • From 2 Pc. 118,11 € 99,25 € -9%
  • From 4 Pc. 103,34 € 86,84 € -21%
  • From 5 Pc. 84,88 € 71,33 € -35%
23100428
380 Pc. in stock
188,25 € 158,19 €
Gewicht in kg 3.6270
Abmessung DN50 2″
Material CF8M (1.4408)
Gewinde DIN EN 10226-1/ ISO 7-1
A 16,0 mm
B 12,0 mm
D 50,0 mm
D2 61,1 mm
D1 62,0 mm
F 14,0 mm
H 124,0 mm
H1 85,0 mm
H2 14,0 mm
L 132,0 mm
L1 134,0 mm
L2 275,0 mm
L3 132,0 mm
W 188,0 mm
PN 63
  • From 2 Pc. 170,53 € 143,30 € -9%
  • From 4 Pc. 149,21 € 125,39 € -21%
  • From 5 Pc. 122,57 € 103,00 € -35%
23100429
155 Pc. in stock
380,57 € 319,81 €
Gewicht in kg 7.6000
Abmessung DN65 2 1/2″
Material CF8M (1.4408)
Gewinde DIN EN 10226-1/ ISO 7-1
A 16,0 mm
B 12,0 mm
D 65,0 mm
D2 76,9 mm
D1 77,0 mm
F 17,0 mm
H 156,0 mm
H1 109,0 mm
H2 19,0 mm
L 170,0 mm
L1 170,0 mm
L2 334,0 mm
L3 170,0 mm
W 233,0 mm
PN 63
  • From 2 Pc. 344,74 € 289,70 € -9%
  • From 4 Pc. 301,65 € 253,49 € -21%
  • From 5 Pc. 247,78 € 208,22 € -35%
23100430
57 Pc. in stock
587,40 € 493,61 €
Gewicht in kg 10.8000
Abmessung DN80 3″
Material CF8M (1.4408)
Gewinde DIN EN 10226-1/ ISO 7-1
A 16,0 mm
B 12,0 mm
D 76,0 mm
D2 89,8 mm
D1 90,0 mm
F 17,0 mm
H 165,0 mm
H1 118,0 mm
H2 19,0 mm
L 186,5 mm
L1 192,0 mm
L2 345,0 mm
L3 186,5 mm
W 233,0 mm
PN 63
2025 Kalenderwoche 43: 30 Stk. <br> 2025 Kalenderwoche 51: 100 Stk. <br>
  • From 2 Pc. 532,10 € 447,14 € -9%
  • From 4 Pc. 465,59 € 391,25 € -21%
  • From 5 Pc. 382,44 € 321,38 € -35%

Beschreibung / 3-teiliger Anschweißkugelhahn SE

CE PED geprüft: Mit Werkszeugnis nach EN 10204 3.1

Ausführung: Voller Durchgang, 3-teilig, Anschweißenden, im Feinguss ISO-Top 5211 – Direktaufnahme für Stellantrieb

Zulassung: ATEX (GAS) IIB, Zone 1 & 2 & (DUST) Zone 21 & 22

Druck: PN 63 (PSI 1000)

Ersatzdichtung: Ersatzdichtungen für 3-teiligen Kugelhahn

3D-Datei: Eine 3D-STEP-Datei ist in den Produktanlagen verfügbar.

Alternative: 3-teiliger Kugelhahn (Anschweißfitting) ohne ISO-Top
